Audiomat So
𝜑

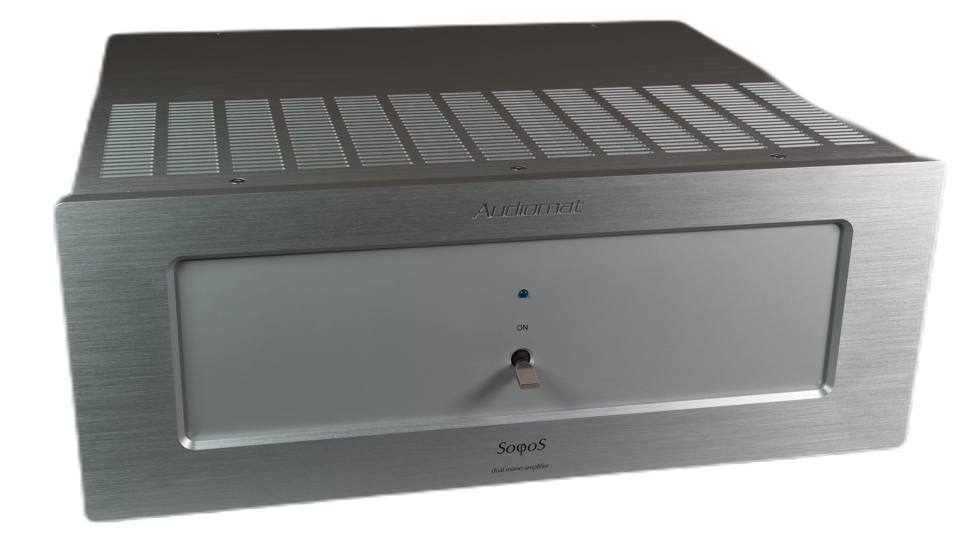

oS dual mono amplifier
Input stage: 4x JJ ECC99
Output stage: 4x JJ KT88 (auto-bias)

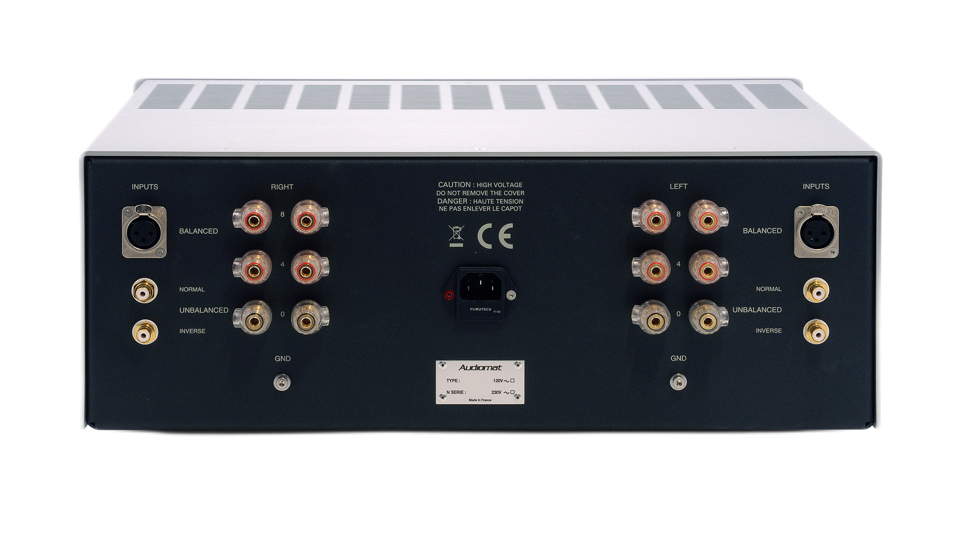

Inputs: 2x RCA, 2x RCA inverted, 2x XLR
Loudspeakers outputs: 4 and 8
𝛀
, bi-wiring
Power: 2x 25 or 2x 40 W (pure Class A for both)
Bandwidth
: 15 Hz - 90 kHz - 3 dB
Input impedance: 18 k
𝛀
Power consumption
: 360 W
Dimensions: 48 x 20 x 41 cm / 19 x 8 x 16"
Weight: net 27 kg / 60 lb, packed 30 kg / 66 lb
Fully symmetrical
Real "Dual mono", double power supply
